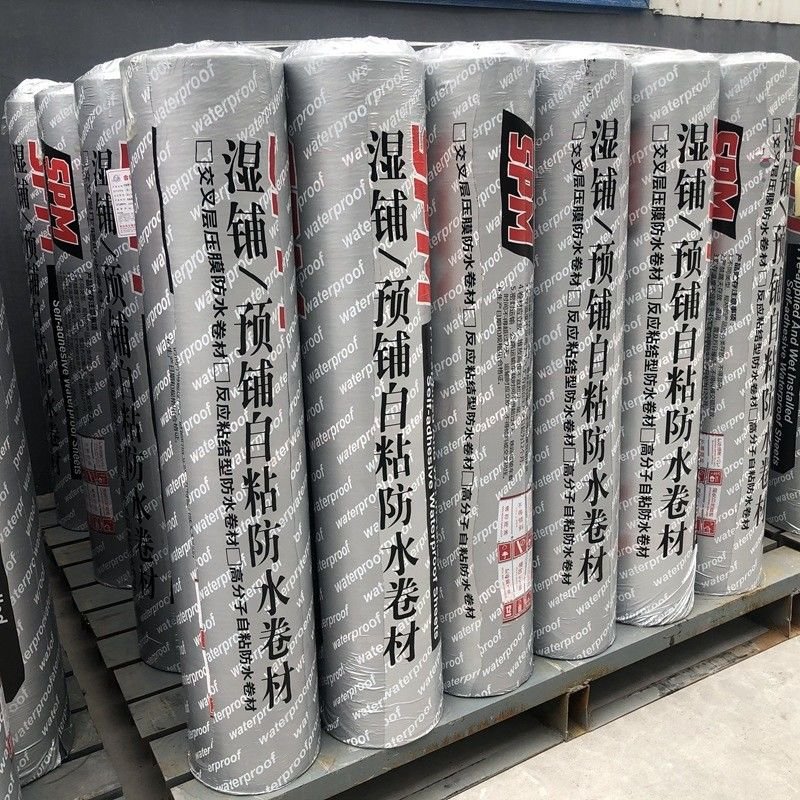

1.2mm * 20m * 1m Economical and practical, suitable for residential roofs. With convenient construction process, it can be installed by wet-laying method.
Product Description
| Product Name |
Self Adhesive Waterproof Membrane |
| Material |
Bitumen |
| Color |
Black,silvery |
The Bitumen Self Adhesive Waterproof Membrane stands out as a top-tier solution, engineered to perform optimally across diverse scenarios.
It features a high-performance cross-laminated protective film, a cutting-edge blend of modified bitumen,
and a backing release paper that preserves its adhesive strength.
When installing, simply peel off the release paper,
and the specialized bitumen compound adheres firmly to a wide range of surfaces,
ensuring a reliable and seamless waterproofing layer.
Application
- Ideal for waterproofing basements and concrete or wooden rooftops in both industrial and residential buildings, this material also excels at protecting other architectural components. It’s the perfect choice for areas where high tensile strength, tear resistance, and elongation are essential for effective waterproofing and damp proofing.
- Suitable for waterproofing the basements as well as concrete or wooden roof decks of industrial and residential structures, it can also be applied to various other architectural elements. Whether for waterproofing or damp proofing, it meets the demand for materials with superior tensile, tearing strength, and elongation capabilities.
Advantages
- Exceptional physical properties: outstanding tensile strength, flexible sealing around nails and gaps, adaptable to various substrates.
- Cold - applied: eliminates fire risks, the self - adhesive asphalt ensures strong adhesion and continuous overlapping.
- High - performance cross - laminated surface film: offers excellent dimensional stability, superior tear resistance,
and enhanced puncture and shock protection.
- Flexible and user - friendly for detailed areas, can be used in combination with other waterproofing materials.
- Convenient membrane repair: due to the strong bond with the substrate, water won't spread even if there's a leak,
enabling quick detection and immediate repair.
Technical Data Sheet
|
No.
|
Property
|
Value
|
|
1
|
Tensile Properties
|
Tensile force
/(N/50mm)
|
Longitudinal
|
≥200
|
|
Transverse
|
|
Elongation at break/ %
|
Longitudinal
|
≥250
|
|
Transverse
|
|
2
|
Peel Strength between Membranes (N/mm)
|
No treatment
|
≥1.0
|
|
Heat treatment
|
≥0.8
|
|
3
|
Dimensional Change Rate/ %
|
Longitudinal
|
≤±1.0
|
|
Transverse
|
|
4
|
Peel Strength (bond to cement mortar) /(N/mm)
|
No treatment
|
≥1.5
|
|
Heat treatment
|
≥1.0
|
|
5
|
Heat Aging (80°C,168h)
|
Tensile retention/%
|
≥90
|
|
Elongation retention/%
|
≥80
|
|
Low Temperature Flexibility
|
No crack at -18°C
|
|
6
|
Bonding Retention /min
|
≥30
|
|
7
|
Heat Resistance
|
70°C, 2h, no blister or flow
|
|
8
|
Low Temperature Flexibility
|
No crack at -20°C (-4°F)
|
|
9
|
Water Impermeability
|
No water leakage in 2 hours(0.3Mpa, 120min)
|
|
REMARK:All the test items according to China Standard GB/T 35467-2017.
|
FAQ
Q: What's the minimum order quantity?
A: Our standard MOQ is [X] square meters/kgs. For smaller trial orders, we can discuss customized options.
Q: Can I request a product customization?
A: Absolutely! We offer personalized solutions for size, color, and functional features. Share your requirements, and our team will provide a tailored proposal.
Q: How long is the production lead time?
A: For regular orders, production takes 7 - 10 working days. Customized products may require 15 - 20 working days, depending on complexity.
Q: What's your return policy?
A: If there are quality issues, we accept returns within 14 days of receipt. Our team will assist with replacements or refunds promptly.
