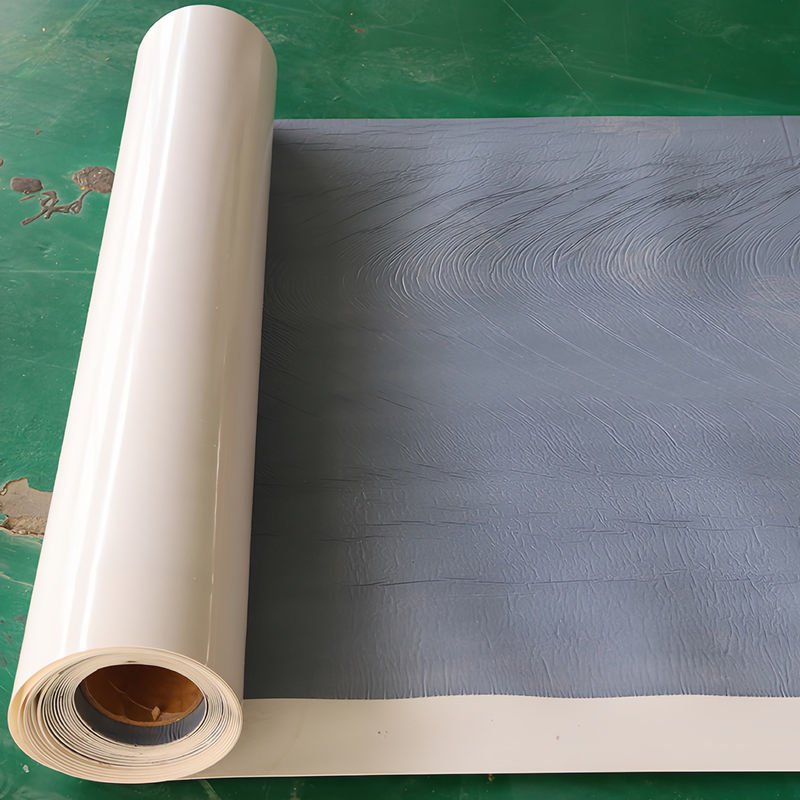

Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof
  • Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof
  • Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof
  • Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof
  • Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof

Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof

Place of Origin Shandong,China
Brand Name HAOBANG
Certification ISO
Model Number 1.2mm TPO waterproof membrane
Product Details
Application:
Roof
Design Style:
Traditional
Warranty:
1 Year
Model Number:
TPO(Smooth Version) 1.2mm*2m*20m
Color:
Grey, White (Color Can Be Customized)
Thickness:
1.2mm
Width:
1m/2m
Length:
20m/roll
Highlight:

TPO waterproof membrane for steel roofs

,

Hot weldable polyolefin roofing membrane

,

Industrial aging resistant waterproof membrane

Payment & Shipping Terms
Minimum Order Quantity
1,000 square meters
Price
Price negotiable
Packaging Details
Packed in Roll and on Pallet
Delivery Time
6-7 work days
Payment Terms
T/T,L/C
Supply Ability
680000 square meters per year
Product Description

Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof

      Product Description




 Product Name 1.2mm TPO Roofing Membrane  (Smooth Version)
 Material TPO
 Color  White


Adopting premium polyolefin thermoplastic raw material, this Haobang TPO-H sheet blends excellent heat-sealing performance of high-grade propylene copolymer and stable aging resistance of polypropylene resin. Adopted sophisticated production craft, it is a solid multi-layer composite waterproof membrane, ideal for detail waterproofing of exposed roofing systems.

Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof 0Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof 1


      Technical Data Sheet




  GB27789-2011 TPO Waterproofing Membrane(Type H)
  Tensile Properties

Value
  Tensile strength MPa 12
  Elongation at rapture
% 500
  Dimensional change rate on heating
% 2
  Low temperature bending
- -40℃No Cracks
  Watertightness
- 0.3 MPa,2h Watertight
  Impact resistance - - 0.5 kg ·m, No water leakage
  Peel strength at joints
N/mm 4.0 or damaged
  Right angle tear strength
N/mm 60
  Water Absorption Rate(70℃168h)
% 4
  Heat aging (115℃)


  Time - h 672
  Appearance - - No blistering,cracks,delamination,sticking or voids
  Tensile strength retention % 90
  Elongation retention at rapture % 90
  Low temperature bendability - - -40, No Cracks
  Chemical resistance


  Appearance - - No blistering,cracksdelaminationsticking or voids
  Tensile strength retention % 90
  Elongation retention at rapture % 90
  Low temperature bendability - - -40℃,No Cracks
  Artificial climate accelerates aging


  Time - h 2500
  Appearance - - No blisteringcracks,delamination,sticking or voids
  Tensile strength retention
% 90
  Elongation retention at break % 90
  Low temperature bendability

-40℃, No Cracks
  Wind uplift resistance
4.3Kpa 90



      Application



  • Traffic hubs: airport lounges, bullet rail stations, public transit terminals…

  • Public constructions: conference venues, exhibition halls, sports arenas…

  • Modern infrastructure: cloud data centers, logistics distribution hubs…

  • Industrial facilities: auto plants, electronics workshops, machinery manufacturing, tobacco processing…


      Advantages



  • Superior heat fusion performance;

  • Great flexibility under low-temperature conditions;

  • Outstanding dimensional retention capability;

  • Remarkable tensile elongation performance;

  • Strong anti-impact bearing capacity;

  • High solar radiation reflection efficiency;

  • Eco-friendly energy-saving material with recyclable property;

  • Prolonged anti-ultraviolet aging endurance.


      Specification




Each standard roll is individually encapsulated in polyethylene film. The width is 2.0m, and the length varies according to the thickness of the membrane.
  • 0.8mm 30m(Each roll weighs about 48-50kg)
  • 1.2mm 25m(Each roll weighs about 62-64kg)
  • 1.5mm 20m(Each roll weighs about 62-64kg)
  • 1.8mm 15m(Each roll weighs about 56-58kg)
  • 2.0mm 15m(Each roll weighs about 62-64kg)

Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof 2


Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof 3


Aging Resistant Polyolefin Waterproof Membrane Hot Weldable For Industrial Steel Roof 4

      FAQ




Q:  Is sample free?
A: Yes , sample of less than 1M2 or 1KG will be free of charge subject to buyer paying for freight cost.

Q: Could I use my own shipping agent ?
A: Yes , your agent will be welcomed.


Q:Is the price negotiable?
A: A favourable discount will be given if the order in large quantity.
