| Attribute | Value |
|---|---|
| Thickness | 1.2mm/1.5mm/2.0mm |
| Trademark | HAOBANG |
| Tear Resistance | ≥ 250N |
| Coil Width | 1m,2m |
| Welding Performance | Superior |
| Transport Packages | Tray packaging |
| Type | Smooth Version |
| Length | 20m |
| Impermeability | 0.3Mpa, 2-hour Impermeable |
| Texture Of Material | TPO Material |
Haobang TPO-H stands for a uniform multi-layer composite thermoplastic polyolefin polymer waterproof membrane, made from thermoplastic polyolefin (TPO) materials. It combines the weldability of propylene-alpha-olefin copolymer resins produced through cutting-edge polymerization techniques with the sturdiness of polypropylene resins. Via advanced manufacturing technology, this membrane is specially used for the detailed handling of exposed roof surfaces.
| GB27789-2011 TPO Waterproofing Membrane(Type H) | |||
|---|---|---|---|
| Test Item | Symbol | Unit | Value |
| Tensile strength | ≥ | MPa | 12 |
| Elongation at rapture | % | 500 | |
| Dimensional change rate on heating | % | 2 | |
| Low temperature bending | - | -40℃ No Cracks | |
| Watertightness | - | 0.3 MPa, 2h Watertight | |
| Impact resistance | - | - | 0.5 kg*m, No water leakage |
| Peel strength at joints | N/mm | 4.0 or damaged | |
| Right angle tear strength | N/mm | 60 | |
| Water Absorption Rate(70℃168h) | % | 4 | |

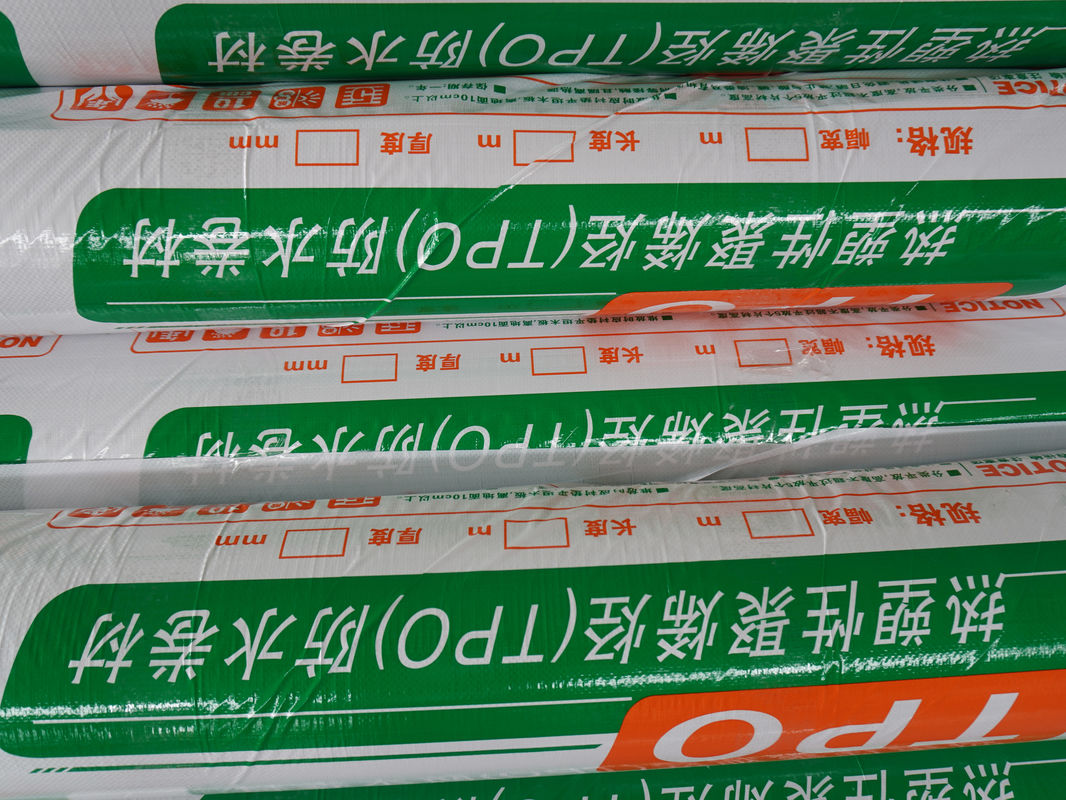

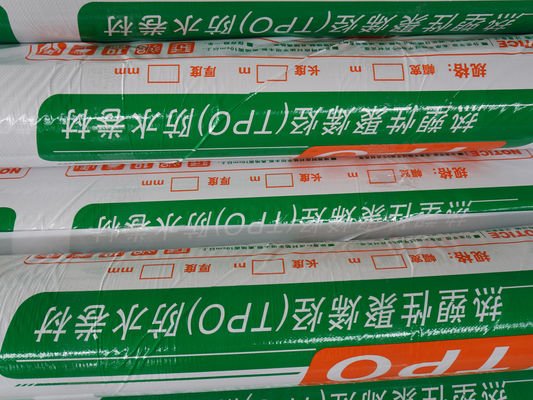

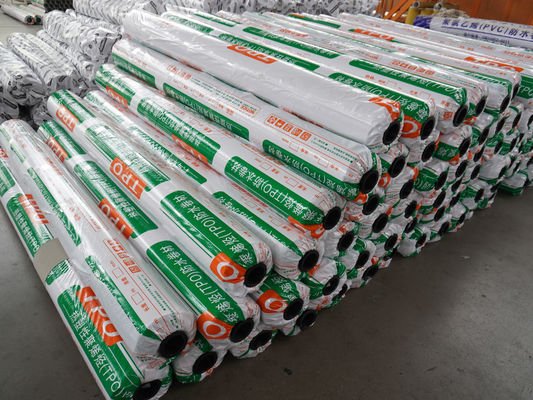

Each standard roll is individually sealed in polyethylene film. The width is fixed at 2.0 meters, while the length varies according to the membrane thickness.
