Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost
  • Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost
  • Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost
  • Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost
  • Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost

Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost

Place of Origin Shandong,China
Brand Name HAOBANG
Certification ISO
Model Number 1.5mm TPO waterproof membrane
Product Details
Features:
Chemical Resistance / Weldability
Thickness:
1.2mm/1.5mm/2.0mm
Heat Resistance:
≥90℃
Root Penetration Resistance:
No Penetration
Transport Packages:
Tray Packaging
Feathure:
Excellent Tensile Strength
Width:
1.2m/1.5m/2.0m
Material:
Thermoplastic Polyolefin
Highlight:

Fiber strengthened TPO waterproof membrane

,

1.5mm white roof panel

,

Labor saving waterproof roof install

Payment & Shipping Terms
Minimum Order Quantity
1,000 square meters
Price
Price negotiable
Packaging Details
Packed in Roll and on Pallet
Delivery Time
6-7 work days
Payment Terms
L/C,T/T
Supply Ability
680000 square meters per year
Product Description

Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install  Minimal Upkeep Cost


      Product Description

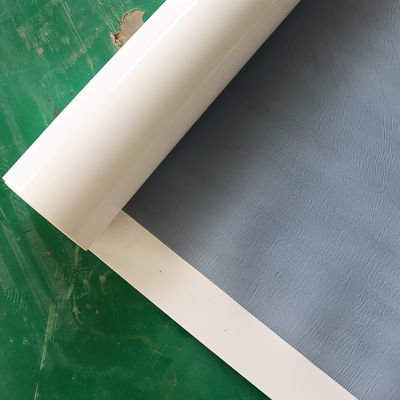

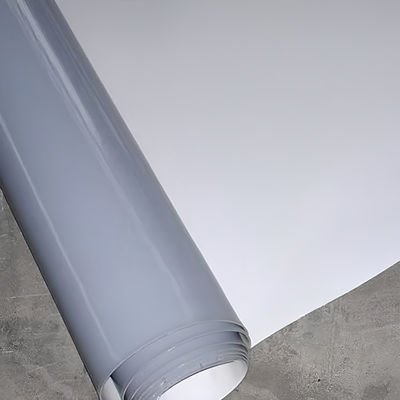

 Product Name 1.5mm TPO Roofing Membrane  (Fiber Reinforced)
 Material TPO
 Color  White


Based on thermoplastic polyolefin (TPO) material (combining the weldability of propylene-alpha-olefin copolymer resins from advanced polymerization processes with the durability of polypropylene resins), Haobang TPO-H is a homogeneous multi-layer composite thermoplastic polyolefin polymer waterproof membrane through advanced processing technology, and is used for detailed treatment of exposed roofs.

Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost 0Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost 1


      Technical Data Sheet



  GB27789-2011 TPO Waterproofing Membrane(Type H)
  Tensile Properties

Value
  Tensile strength ≥ MPa 12
  Elongation at rapture
% 500
  Dimensional change rate on heating
% 2
  Low temperature bending
- -40℃No Cracks
  Watertightness
- 0.3 MPa,2h Watertight
  Impact resistance - - 0.5 kg ·m, No water leakage
  Peel strength at joints
N/mm 4.0 or damaged
  Right angle tear strength
N/mm 60
  Water Absorption Rate(70℃168h)
% 4
  Heat aging (115℃)


  Time - h 672
  Appearance - - No blistering,cracks,delamination,sticking or voids
  Tensile strength retention ≥ % 90
  Elongation retention at rapture ≥ % 90
  Low temperature bendability - - -40, No Cracks
  Chemical resistance


  Appearance - - No blistering,cracksdelaminationsticking or voids
  Tensile strength retention ≥ % 90
  Elongation retention at rapture ≥ % 90
  Low temperature bendability - - -40℃,No Cracks
  Artificial climate accelerates aging


  Time - h 2500
  Appearance - - No blisteringcracks,delamination,sticking or voids
  Tensile strength retention
% 90
  Elongation retention at break ≥ % 90
  Low temperature bendability

-40℃, No Cracks
  Wind uplift resistance
4.3Kpa 90


      Advantages


  • Superior hot-air fusion performance;

    Great pliability under ultra-low temperature;

    Outstanding overall dimension retention;

    Remarkable tensile stretch performance;

    Strong external impact bearing capacity;

    High solar heat reflection rate;

    Power-saving eco-grade material with recyclable feature;

    Long-lasting anti-ultraviolet aging capability.


      Application


  • Traffic hub venues: airport terminals, high-speed rail stations, passenger transport terminals…

    Large public architectures: conference & exhibition complexes, exhibition galleries, sports arenas…

    Modern new infrastructure: cloud data centers, warehousing logistics parks…

    Factory workshop scenarios: auto manufacturing, electronic processing, mechanical fabrication, tobacco production plants…


      Specification

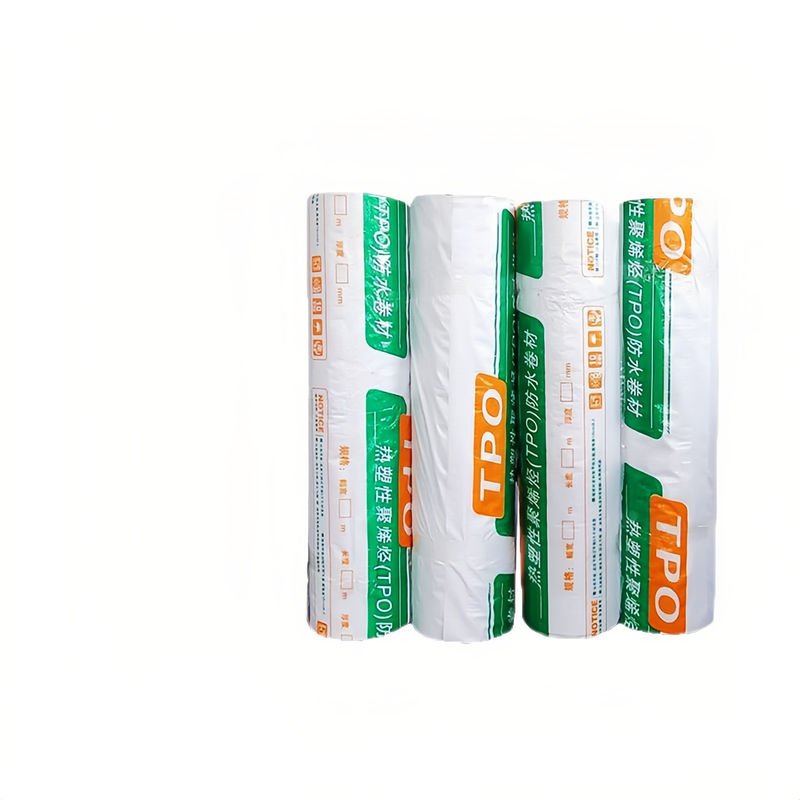

Each standard roll is individually encapsulated in polyethylene film. The width is 2.0m, and the length varies according to the thickness of the membrane.
  • 0.8mm 30m(Each roll weighs about 48-50kg)
  • 1.2mm 25m(Each roll weighs about 62-64kg)
  • 1.5mm 20m(Each roll weighs about 62-64kg)
  • 1.8mm 15m(Each roll weighs about 56-58kg)
  • 2.0mm 15m(Each roll weighs about 62-64kg)

Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost 2


Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost 3


Fiber Strengthened 1.5mm White Waterproof Roof Panel Labor Saving Install Minimal Upkeep Cost 4

      FAQ



Q: Do you offer technical installation support?

A: We supply detailed installation guidelines and online technical guidance all the time. Paid on-site technical service is also available upon your request.


Q: Which payment terms do you accept?

A: We support T/T, L/C at sight and other mainstream payment methods. A reasonable deposit is required for mass orders, with balance settled before shipment.


Q: What is your usual delivery time?

A: For standard orders, the production cycle is 10–15 working days. We can also arrange priority production if you have an urgent project schedule.
