White Reflective Polymer Membrane For Steel Building Single Ply Roof
  • White Reflective Polymer Membrane For Steel Building Single Ply Roof
  • White Reflective Polymer Membrane For Steel Building Single Ply Roof
  • White Reflective Polymer Membrane For Steel Building Single Ply Roof
  • White Reflective Polymer Membrane For Steel Building Single Ply Roof

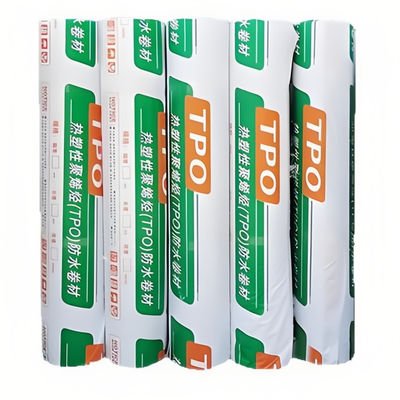

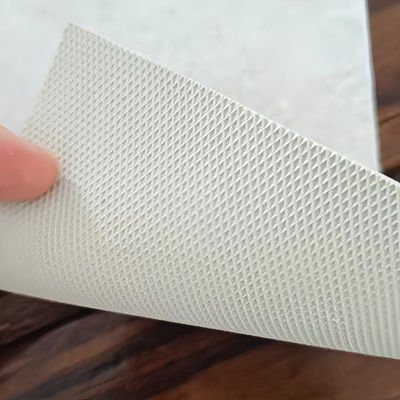

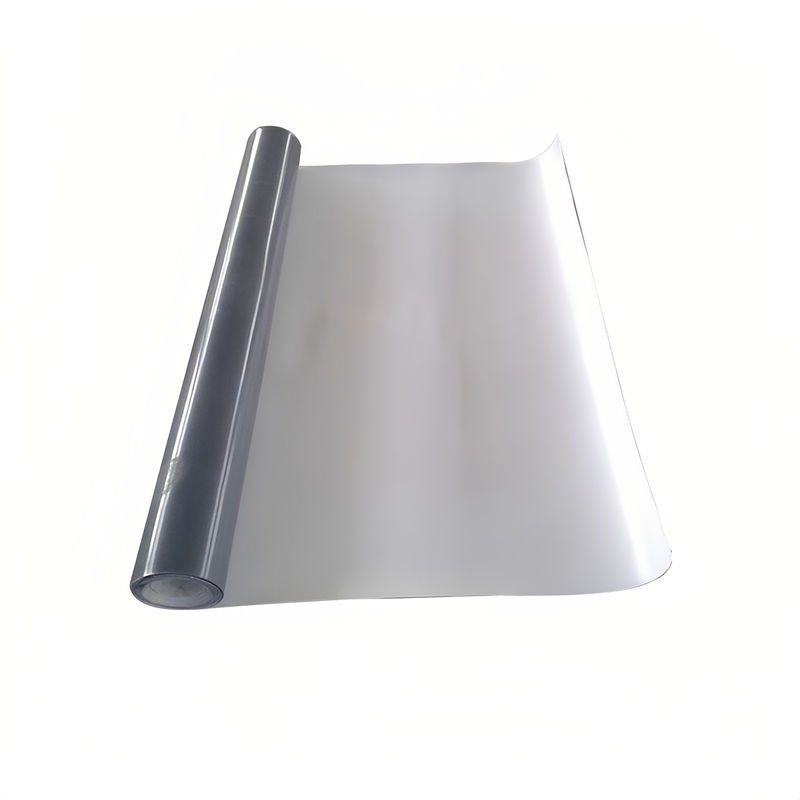

White Reflective Polymer Membrane For Steel Building Single Ply Roof

Place of Origin Shandong,China
Brand Name HAOBANG
Certification ISO
Model Number TPO Roof Membrane
Product Details
Material:
TPO
Usage:
Building Waterproof Material
Water Absorption Rate:
4%
Transport Packages:
Tray Packaging
Color:
White
Welding Performance:
Superior
Chemical Resistance:
Yes
Roll Length:
20m
Highlight:

white reflective TPO membrane

,

polymer roofing membrane for steel buildings

,

single ply waterproof roofing membrane

Payment & Shipping Terms
Minimum Order Quantity
1,000 square meters
Price
Price negotiable
Packaging Details
Packed in Roll and on Pallet
Delivery Time
6-7 work days
Payment Terms
L/C,T/T
Supply Ability
680000 square meters per year
Product Description

White Reflective Polymer Membrane For Steel Building Single Ply Roof


      Product Description



 Product Name TPO Roofing Membrane  (Smooth Version)
 Material TPO
 Color  White


Adopting premium thermoplastic polyolefin base material, this Haobang TPO-H membrane integrates the excellent fusion performance of high-grade propylene-alpha-olefin copolymer crafted by modern polymerization technology, alongside the long-service-life stability of polypropylene raw materials. It is a solid multi-layer compound thermoplastic polyolefin waterproof sheet manufactured via sophisticated production techniques, perfectly suited for detail sealing and construction of fully exposed roofing projects.

White Reflective Polymer Membrane For Steel Building Single Ply Roof 0White Reflective Polymer Membrane For Steel Building Single Ply Roof 1


      Technical Data Sheet



  GB27789-2011 TPO Waterproofing Membrane(Type H)
  Tensile Properties

Value
  Tensile strength ≥ MPa 12
  Elongation at rapture
% 500
  Dimensional change rate on heating
% 2
  Low temperature bending
- -40℃No Cracks
  Watertightness
- 0.3 MPa,2h Watertight
  Impact resistance - - 0.5 kg ·m, No water leakage
  Peel strength at joints
N/mm 4.0 or damaged
  Right angle tear strength
N/mm 60
  Water Absorption Rate(70℃168h)
% 4
  Heat aging (115℃)


  Time - h 672
  Appearance - - No blistering,cracks,delamination,sticking or voids
  Tensile strength retention ≥ % 90
  Elongation retention at rapture ≥ % 90
  Low temperature bendability - - -40, No Cracks
  Chemical resistance


  Appearance - - No blistering,cracksdelaminationsticking or voids
  Tensile strength retention ≥ % 90
  Elongation retention at rapture ≥ % 90
  Low temperature bendability - - -40℃,No Cracks
  Artificial climate accelerates aging


  Time - h 2500
  Appearance - - No blisteringcracks,delamination,sticking or voids
  Tensile strength retention
% 90
  Elongation retention at break ≥ % 90
  Low temperature bendability

-40℃, No Cracks
  Wind uplift resistance
4.3Kpa 90



      Advantages



    • Long-term anti-ultraviolet aging performance

    • Excellent hot-air fusion bonding property

    • Great pliability under low-temperature environments

    • Stable overall dimension retention performance

    • Superior tensile stretch resilience

    • Strong external impact load resistance

    • High solar radiant reflection efficiency

    • Energy saving, environmentally safe and fully recyclable


      Application



  • Industrial application scenarios: auto assembly workshops, electronic component factories, mechanical processing workshops, tobacco production facilities…

    Traffic core venues: airport terminal buildings, high-speed railway stations, urban passenger transport hubs…

    Large public buildings: conference centers, exhibition halls, sports arenas and gymnasiums…

    Modern new infra projects: cloud data centers, warehousing and logistics distribution parks…


      Specification



Each standard roll is individually encapsulated in polyethylene film. The width is 2.0m, and the length varies according to the thickness of the membrane.
  • 0.8mm 30m(Each roll weighs about 48-50kg)
  • 1.2mm 25m(Each roll weighs about 62-64kg)
  • 1.5mm 20m(Each roll weighs about 62-64kg)
  • 1.8mm 15m(Each roll weighs about 56-58kg)
  • 2.0mm 15m(Each roll weighs about 62-64kg)

White Reflective Polymer Membrane For Steel Building Single Ply Roof 2


White Reflective Polymer Membrane For Steel Building Single Ply Roof 3


White Reflective Polymer Membrane For Steel Building Single Ply Roof 4

      FAQ



Q: Do you supply free samples?

A: Yes, small size free samples are available. Customers only need to bear the freight cost, and samples can be delivered within 3 working days.



Q: How do you control product quality before delivery?

A: Every batch will pass strict raw material inspection, production process monitoring and finished product testing. Third-party inspection is also acceptable.

Q: Can you offer customized specifications and colors?

A: Certainly. We provide tailor-made size, thickness, surface color and packaging solutions according to customers’ design drawings and requirements.
