Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs
  • Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs
Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs

Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs

Place of Origin Shandong,China
Brand Name HAOBANG
Certification ISO
Model Number 1.2mm TPO waterproof membrane
Product Details
After-sale Service:
Online Technical Support, Return And Replacement
Design Style:
Traditional
Warranty:
1 Year
Roofing Application:
Planted Roofs
Feathure:
Excellent Tensile Strength
Coil Length:
20m Or As Agreed By Both Parties
Shape:
Roll Material
Model Number:
TPO(Smooth Version) 1.2mm*2m*20m
Project Solution Capability:
Graphic Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Roof
Highlight:

TPO waterproof membrane for steel roofs

,

weldable TPO roofing membrane

,

easy construct TPO waterproofing

Payment & Shipping Terms
Minimum Order Quantity
1,000 square meters
Price
Price negotiable
Packaging Details
Packed in Roll and on Pallet
Delivery Time
6-7 work days
Payment Terms
T/T,L/C
Supply Ability
680000 square meters per year
Product Description
Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs
Product Description

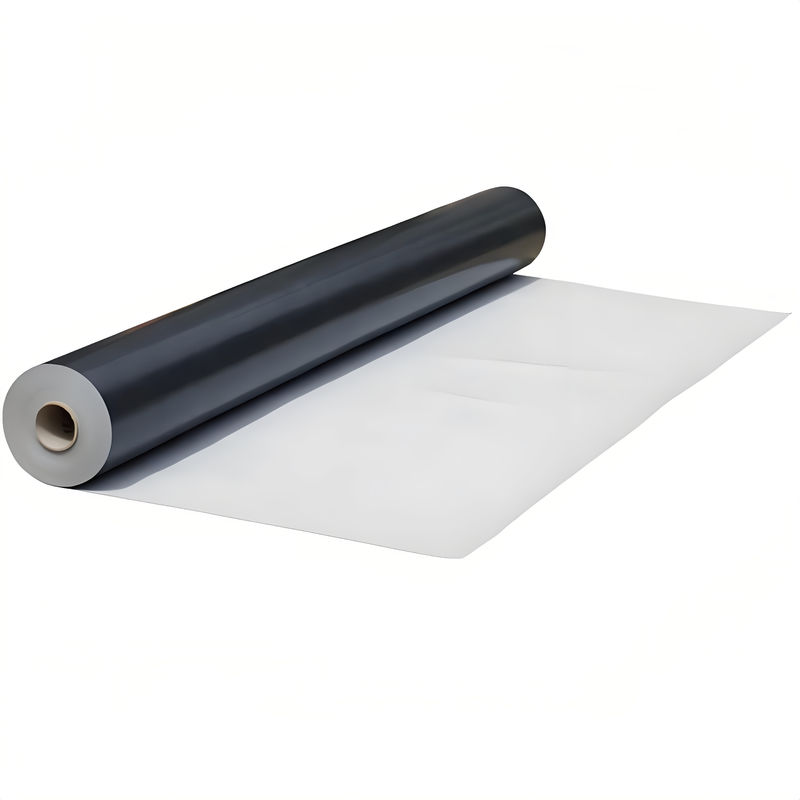

Product Name 1.2mm TPO Roofing Membrane (Smooth Version)
Material TPO
Color White

Made from thermoplastic polyolefin (TPO) material -- merging the weldability of propylene-alpha-olefin copolymer resins from cutting-edge polymerization processes with the durability of polypropylene resins -- Haobang TPO-H is a homogeneous multi-layer composite thermoplastic polyolefin polymer waterproof membrane. Manufactured via state-of-the-art processing technology, it is dedicated to the detailed treatment of exposed roofs.

Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs 0 Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs 1
Technical Data Sheet
GB27789-2011 TPO Waterproofing Membrane(Type H)
Property Condition Unit Value
Tensile strength ≥ MPa 12
Elongation at rapture % 500
Dimensional change rate on heating % 2
Low temperature bending - -40℃ No Cracks
Watertightness - 0.3 MPa, 2h Watertight
Impact resistance - - 0.5 kg*m, No water leakage
Peel strength at joints N/mm 4.0 or damaged
Right angle tear strength N/mm 60
Water Absorption Rate(70℃168h) % 4
Heat aging (115℃)
Time - h 672
Appearance - - No blistering, cracks, delamination, sticking or voids
Tensile strength retention ≥ % 90
Elongation retention at rapture ≥ % 90
Low temperature bendability - - -40, No Cracks
Chemical resistance
Appearance - - No blistering, cracks, delamination, sticking or voids
Tensile strength retention ≥ % 90
Elongation retention at rapture ≥ % 90
Low temperature bendability - - -40℃, No Cracks
Artificial climate accelerates aging
Time - h 2500
Appearance - - No blistering, cracks, delamination, sticking or voids
Tensile strength retention % 90
Elongation retention at break ≥ % 90
Low temperature bendability - -40℃, No Cracks
Wind uplift resistance 4.3Kpa 90
Application
  • Transportation hubs: airport terminals, high-speed rail stations, passenger terminals...
  • Public buildings: convention centers, exhibition halls, sports venues...
  • New infrastructure: big data centers, logistics complexes...
  • Industrial facilities: automobile, electronics, machinery, tobacco manufacturing plants...
Advantages
  • Superior weldability
  • Excellent low-temperature flexibility
  • Outstanding dimensional stability
  • Good elongation property
  • Good impact resistance
  • High solar reflectivity
  • Energy-efficient and eco-friendly, recyclable
  • Long-term UV resistance
Specification

Each standard roll is individually encapsulated in polyethylene film. The width is 2.0m, and the length varies according to the thickness of the membrane.

  • 0.8mm 30m (Each roll weighs about 48-50kg)
  • 1.2mm 25m (Each roll weighs about 62-64kg)
  • 1.5mm 20m (Each roll weighs about 62-64kg)
  • 1.8mm 15m (Each roll weighs about 56-58kg)
  • 2.0mm 15m (Each roll weighs about 62-64kg)
Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs 2 Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs 3 Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs 4
FAQ
Q: Are samples free of charge?

A: Yes, samples under 1M² or 1KG are complimentary, with the buyer responsible for freight costs.

Q: Can I use my own shipping agent?

A: Yes, your designated shipping agent is welcome.

Q: Is the price negotiable?

A: Preferential discounts are available for bulk orders.
