TPO Waterproof Membrane
>
| Attribute | Value |
|---|---|
| Width | 1.2m/2.0m/3.0m |
| Color | White/Gray |
| Watertightness | 0.3 MPa, 2h Watertight |
| Heat Resistance | ≥70℃ |
| Application | airport, roof, workshop |
| Weatherability | Good |
| Coil Length | 20m or as agreed by both parties |
| Usage | Building Waterproof Material |
| Wind Uplift Resistance | 4.3 Kpa |
| Installation Method | Hot-air Welding |
| Transport Packages | Tray packaging |
| Thickness | 1.2mm/1.5mm/2.0mm |

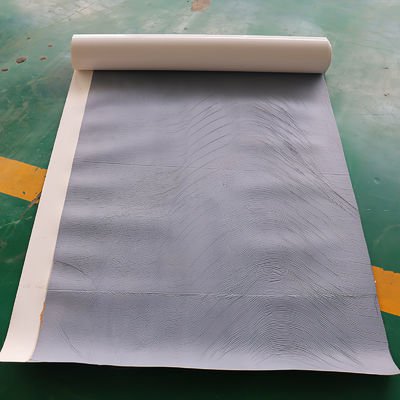

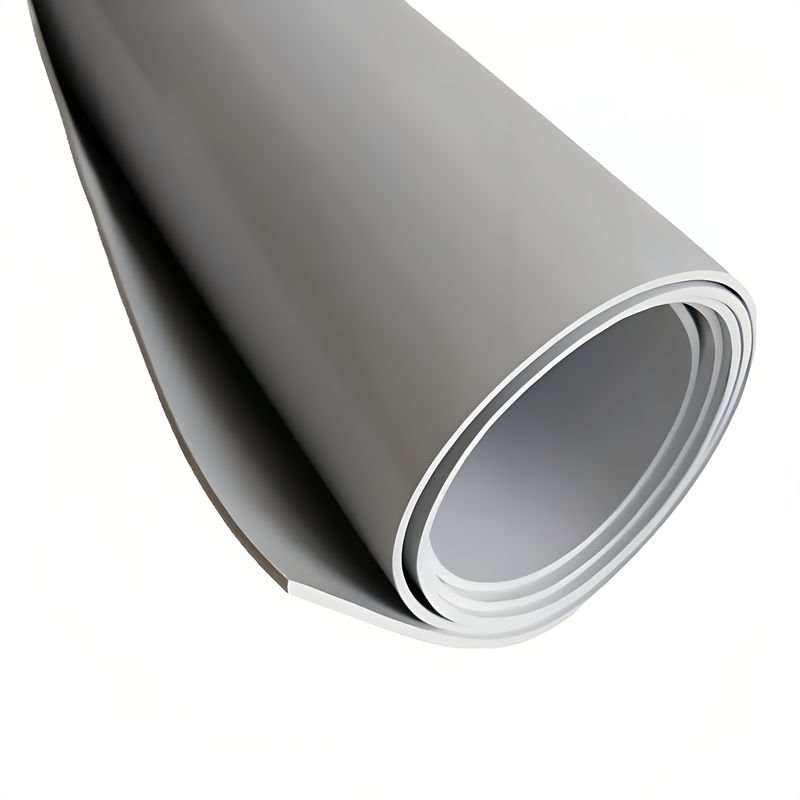

Product Name: 1.2mm TPO Roofing Membrane (Smooth Version)
Material: TPO
Color: White
Haobang TPO-H represents a homogenous multi-layered composite thermoplastic polyolefin polymer waterproofing membrane. Engineered with thermoplastic polyolefin (TPO) material, it integrates the welding capabilities of propylene-alpha-olefin copolymer resins derived from cutting-edge polymerization methods with the long-lasting endurance of polypropylene resins. Using advanced manufacturing technology, this membrane is specifically designed for the meticulous treatment of exposed rooftop surfaces.
| GB27789-2011 TPO Waterproofing Membrane (Type H) | |||
|---|---|---|---|
| Tensile Properties | Unit | Value | |
| Tensile strength | MPa | ≥12 | |
| Elongation at rapture | % | 500 | |
| Dimensional change rate on heating | % | 2 | |
| Low temperature bending | - | -40℃ No Cracks | |
| Watertightness | - | 0.3 MPa,2h Watertight | |
| Impact resistance | - | 0.5 kg*m, No water leakage | |
| Peel strength at joints | N/mm | 4.0 or damaged | |
| Right angle tear strength | N/mm | 60 | |
| Water Absorption Rate(70℃168h) | % | 4 | |
| Heat aging (115℃) | |||
| Time | h | 672 | |
| Appearance | - | No blistering,cracks,delamination,sticking or voids | |
| Tensile strength retention | % | ≥90 | |
| Elongation retention at rapture | % | ≥90 | |
| Low temperature bendability | - | -40, No Cracks | |

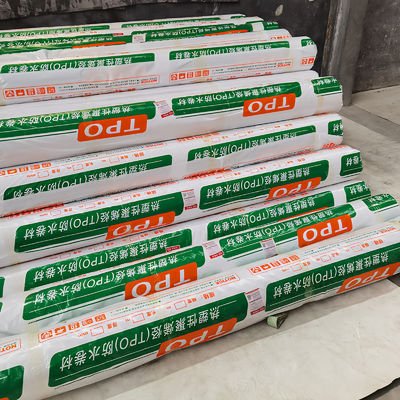

Each standard roll is individually sealed in polyethylene film. The width remains at 2.0 meters, while the length varies according to the membrane's thickness.
A: Yes. Samples with an area of less than 1m² or a weight below 1kg are provided free of charge, but the shipping expenses need to be borne by the customer.
A: Of course. We welcome cooperation with your chosen shipping agency.
A: Yes. Large-scale orders will enjoy significant price concessions.
