Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane
  • Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane
  • Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane
  • Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane
  • Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane

Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane

Place of Origin Shandong,China
Brand Name HAOBANG
Certification ISO
Model Number 1.2mm TPO waterproof membrane
Product Details
Width:
1.2m/2.0m/3.0m
Color:
White/Gray
Watertightness:
0.3 MPa, 2h Watertight
Heat Resistance:
≥70℃
Application:
Airport, Roof, Workshop
Weatherability:
Good
Coil Length:
20m Or As Agreed By Both Parties
Usage:
Building Waterproof Material
Wind Uplift Resistance:
4.3 Kpa
Installation Method:
Hot-air Welding
Highlight:

Renovation Fiber Reinforced TOP

,

High Temperature Performance Fiber Reinforced TOP

,

Old roof Fiber Reinforced TOP

Payment & Shipping Terms
Minimum Order Quantity
1,000 square meters
Price
Price negotiable
Packaging Details
Packed in Roll and on Pallet
Delivery Time
6-7 work days
Payment Terms
T/T,L/C
Supply Ability
680000 square meters per year
Product Description
Fiber Reinforced TOP Excellent High and Low Temperature Performance Old Roof Renovation Multi-Layer TPO Roofing Membrane
Product Specifications
Width1.2m/2.0m/3.0m
ColorWhite/Gray
Watertightness0.3 MPa, 2h Watertight
Heat Resistance≥70℃
Applicationairport, roof, workshop
WeatherabilityGood
Coil Length20m or as agreed by both parties
UsageBuilding Waterproof Material
Wind Uplift Resistance4.3 Kpa
Installation MethodHot-air Welding
Product Description
Product Name1.2mm TPO Roofing Membrane (Smooth Version)
MaterialTPO
ColorWhite

Haobang TPO-H is a uniform multi-layer composite thermoplastic polyolefin polymer waterproof membrane, which is made of thermoplastic polyolefin (TPO) material. It combines the weldability of propylene-alpha-olefin copolymer resins produced by advanced polymerization techniques with the durability of polypropylene resins. Through sophisticated processing technology, this membrane is specially applied to the detailed treatment of exposed roofs.

Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane 0 Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane 1
Technical Data Sheet
GB27789-2011 TPO Waterproofing Membrane (Type H)
Tensile PropertiesValue
Tensile strength≥12 MPa
Elongation at rapture500%
Dimensional change rate on heating2%
Low temperature bending-40℃ No Cracks
Watertightness0.3 MPa, 2h Watertight
Impact resistance0.5 kg*m, No water leakage
Peel strength at joints4.0 N/mm or damaged
Right angle tear strength60 N/mm
Water Absorption Rate (70℃168h)4%
Heat Aging (115℃)
Time672 h
AppearanceNo blistering, cracks, delamination, sticking or voids
Tensile strength retention≥90%
Elongation retention at rapture≥90%
Low temperature bendability-40℃, No Cracks
Chemical Resistance
AppearanceNo blistering, cracks, delamination, sticking or voids
Tensile strength retention≥90%
Elongation retention at rapture≥90%
Low temperature bendability-40℃, No Cracks
Artificial Climate Accelerates Aging
Time2500 h
AppearanceNo blistering, cracks, delamination, sticking or voids
Tensile strength retention≥90%
Elongation retention at break≥90%
Low temperature bendability-40℃, No Cracks
Wind uplift resistance4.3Kpa
Applications
  • Transportation hubs: air terminals, bullet train stations, coach terminals
  • Public facilities: convention centers, galleries, arenas
  • Modern infrastructure: data hubs, distribution centers
  • Manufacturing facilities: automotive plants, electronics factories, machinery workshops, cigarette manufacturing plants
Advantages
  • Superb fusion bonding capabilities
  • Outstanding flexibility in sub-zero conditions
  • Exceptional dimensional constancy
  • Superior stretching capacity
  • Robust shock absorption
  • High solar reflectance efficiency
  • Sustainable design with recyclable materials
  • Prolonged UV radiation resistance
Specifications

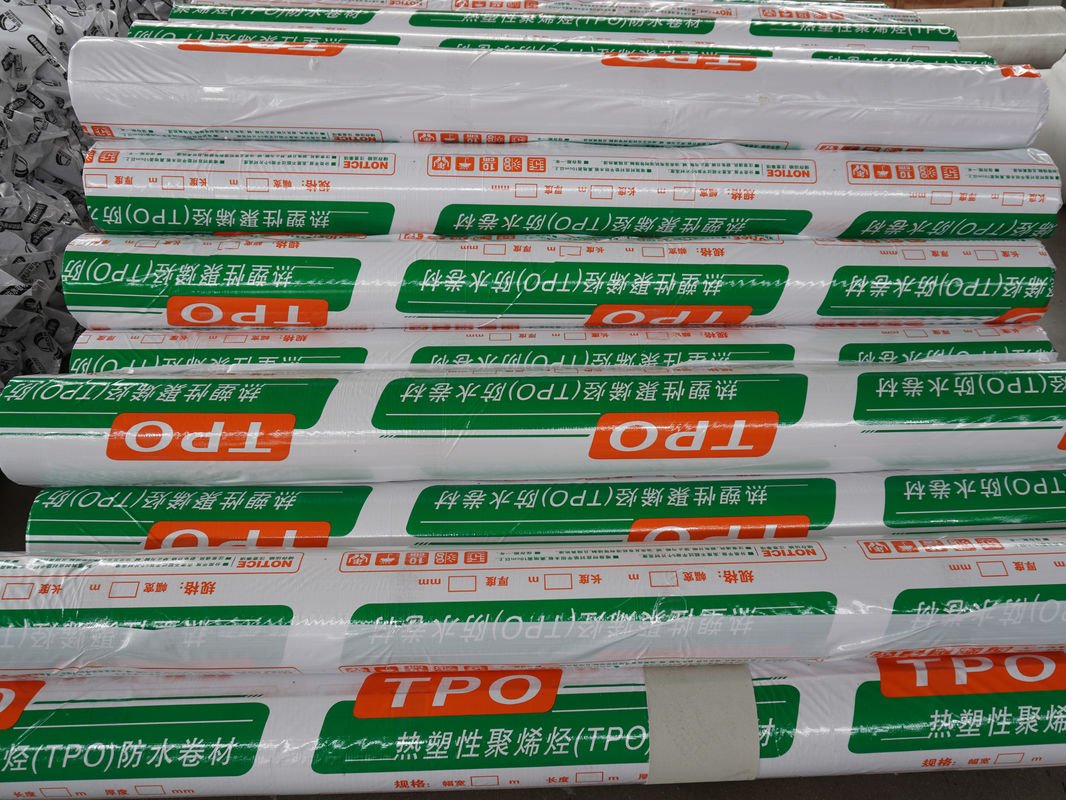

Every standard roll is separately enclosed in polyethylene packaging. The width measures 2.0 meters, and the length is determined by the membrane's thickness.

  • 0.8mm 30m (Approximate weight per roll: 48-50 kilograms)
  • 1.2mm 25m (Approximate weight per roll: 62-64 kilograms)
  • 1.5mm 20m (Approximate weight per roll: 62-64 kilograms)
  • 1.8mm 15m (Approximate weight per roll: 56-58 kilograms)
  • 2.0mm 15m (Approximate weight per roll: 62-64 kilograms)
Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane 2 Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane 3 Fiber Reinforced TOP Excellent high and low temperature performance Old roof renovation Multi-Layer TPO Roofing Membrane 4
Frequently Asked Questions
Q: Are samples available at no cost?
A: Certainly. Samples sized under 1 square meter or weighing less than 1 kilogram are complimentary, though the buyer is responsible for covering the shipping fees.
Q: Can I utilize my own freight forwarder?
A: Absolutely. We're happy to work with your designated shipping agent.
Q: Is there room for price adjustment?
A: Indeed. Substantial orders will qualify for attractive discounts.
