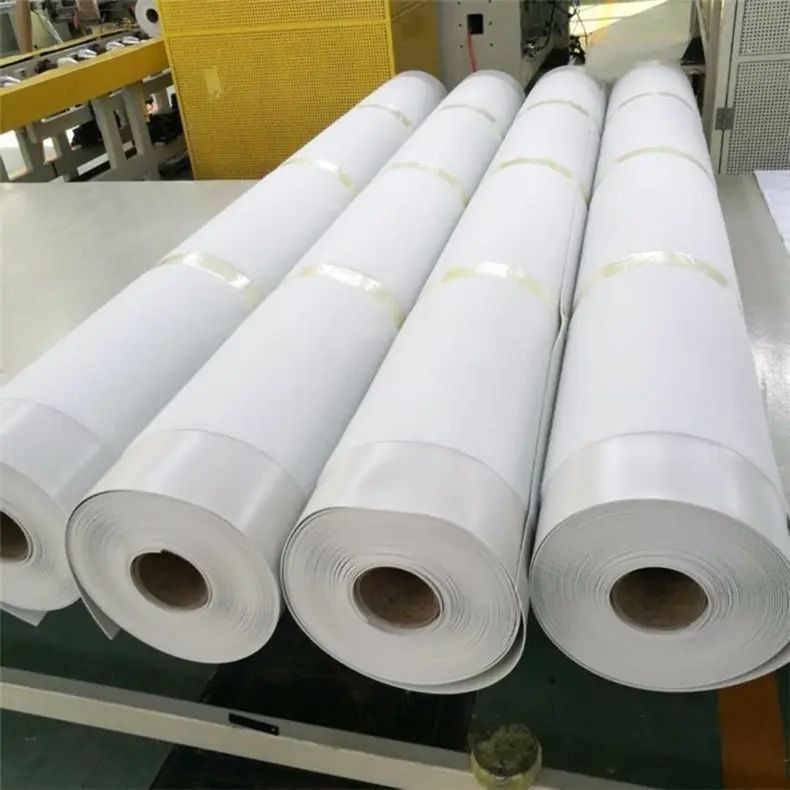

Fiber Reinforced 1.5mm Thickness Tpo Roof Membrane Easy To Construct And Maintain
Product Description
| Product Name |
1.5mm TPO Roofing Membrane (Fiber Reinforced) |
| Material |
TPO |
| Color |
White |
Based on thermoplastic polyolefin (TPO) material (combining the weldability of propylene-alpha-olefin copolymer resins from advanced polymerization processes with the durability of polypropylene resins), Haobang TPO-H is a homogeneous multi-layer composite thermoplastic polyolefin polymer waterproof membrane through advanced processing technology, and is used for detailed treatment of exposed roofs.
Technical Data Sheet
| GB27789-2011 TPO Waterproofing Membrane(Type H) |
| Tensile Properties |
|
|
Value |
| Tensile strength |
≥ |
MPa |
12 |
| Elongation at rapture |
|
% |
500 |
| Dimensional change rate on heating |
|
% |
2 |
| Low temperature bending |
|
- |
-40℃No Cracks |
| Watertightness |
|
- |
0.3 MPa,2h Watertight |
| Impact resistance |
- |
- |
0.5 kg ·m, No water leakage |
| Peel strength at joints |
|
N/mm |
4.0 or damaged |
| Right angle tear strength |
|
N/mm |
60 |
| Water Absorption Rate(70℃168h) |
|
% |
4 |
| Heat aging (115℃) |
|
|
|
| Time |
- |
h |
672 |
| Appearance |
- |
- |
No blistering,cracks,delamination,sticking or voids |
| Tensile strength retention |
≥ |
% |
90 |
| Elongation retention at rapture |
≥ |
% |
90 |
| Low temperature bendability |
- |
- |
-40, No Cracks |
| Chemical resistance |
|
|
|
| Appearance |
- |
- |
No blistering,cracksdelaminationsticking or voids |
| Tensile strength retention |
≥ |
% |
90 |
| Elongation retention at rapture |
≥ |
% |
90 |
| Low temperature bendability |
- |
- |
-40℃,No Cracks |
| Artificial climate accelerates aging |
|
|
|
| Time |
- |
h |
2500 |
| Appearance |
- |
- |
No blisteringcracks,delamination,sticking or voids |
| Tensile strength retention |
|
% |
90 |
| Elongation retention at break |
≥ |
% |
90 |
| Low temperature bendability |
|
|
-40℃, No Cracks |
| Wind uplift resistance |
|
4.3Kpa |
90 |
Advantages
-
Excellent weldability;
-
Good low temperature flexibility;
-
Excellent dimensional stability;
-
Good elongation property;
-
Good impact resistance;
-
High sunlight reflectivity;
-
Energy saving and environmental friendly, recyclable;
-
Long-term resistance to UV exposure
Application
- Transportation hub: airport terminal, high-speed railway station, passenger terminal...
-
Public buildings: convention and exhibition centers, exhibition halls, stadiums...
-
New infrastructure: big data center, logistics center...
-
Industrial plants: automobiles, electronics, machinery, tobacco factories...
Specification
Each standard roll is individually encapsulated in polyethylene film. The width is 2.0m, and the length varies according to the thickness of the membrane.
- 0.8mm 30m(Each roll weighs about 48-50kg)
- 1.2mm 25m(Each roll weighs about 62-64kg)
- 1.5mm 20m(Each roll weighs about 62-64kg)
- 1.8mm 15m(Each roll weighs about 56-58kg)
- 2.0mm 15m(Each roll weighs about 62-64kg)
