Superior Welding Performance Tpo Waterproof Membrane Applied To Single-layer Steel Roof
Product Description
| Product Name |
TPO Roofing Membrane (Smooth Version) |
| Material |
TPO |
| Color |
White |
Based on thermoplastic polyolefin (TPO) material (combining the weldability of propylene-alpha-olefin copolymer resins from advanced polymerization processes with the durability of polypropylene resins), Haobang TPO-H is a homogeneous multi-layer composite thermoplastic polyolefin polymer waterproof membrane through advanced processing technology, and is used for detailed treatment of exposed roofs.
Technical Data Sheet
| GB27789-2011 TPO Waterproofing Membrane(Type H) |
| Tensile Properties |
|
|
Value |
| Tensile strength |
≥ |
MPa |
12 |
| Elongation at rapture |
|
% |
500 |
| Dimensional change rate on heating |
|
% |
2 |
| Low temperature bending |
|
- |
-40℃No Cracks |
| Watertightness |
|
- |
0.3 MPa,2h Watertight |
| Impact resistance |
- |
- |
0.5 kg ·m, No water leakage |
| Peel strength at joints |
|
N/mm |
4.0 or damaged |
| Right angle tear strength |
|
N/mm |
60 |
| Water Absorption Rate(70℃168h) |
|
% |
4 |
| Heat aging (115℃) |
|
|
|
| Time |
- |
h |
672 |
| Appearance |
- |
- |
No blistering,cracks,delamination,sticking or voids |
| Tensile strength retention |
≥ |
% |
90 |
| Elongation retention at rapture |
≥ |
% |
90 |
| Low temperature bendability |
- |
- |
-40, No Cracks |
| Chemical resistance |
|
|
|
| Appearance |
- |
- |
No blistering,cracksdelaminationsticking or voids |
| Tensile strength retention |
≥ |
% |
90 |
| Elongation retention at rapture |
≥ |
% |
90 |
| Low temperature bendability |
- |
- |
-40℃,No Cracks |
| Artificial climate accelerates aging |
|
|
|
| Time |
- |
h |
2500 |
| Appearance |
- |
- |
No blisteringcracks,delamination,sticking or voids |
| Tensile strength retention |
|
% |
90 |
| Elongation retention at break |
≥ |
% |
90 |
| Low temperature bendability |
|
|
-40℃, No Cracks |
| Wind uplift resistance |
|
4.3Kpa |
90 |
Advantages
-
Prolonged resistance to UV radiation
-
Outstanding weldability
-
Exceptional flexibility in frigid conditions
-
Superior dimensional consistency
-
High - grade elongation ability
-
Robust impact tolerance
-
Elevated sunlight reflectance
-
Energy - conserving, eco - friendly, and recyclable
Application
-
Industrial sites: automotive manufacturing, electronics production, machinery fabrication,tobacco processing plants...
-
Transport hubs: airport concourses, high - speed rail depots, bus transit stations...
-
Public edifices: convention complexes, exhibition pavilions, sports stadiums...
-
New - age infrastructure: data processing centers, distribution logistics hubs...
Specification

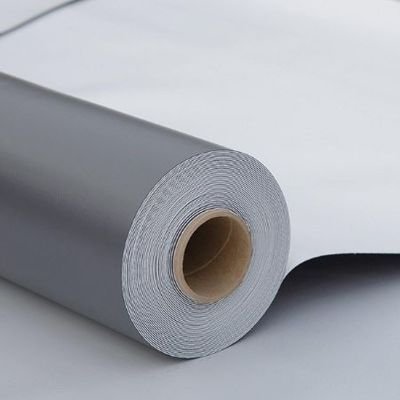

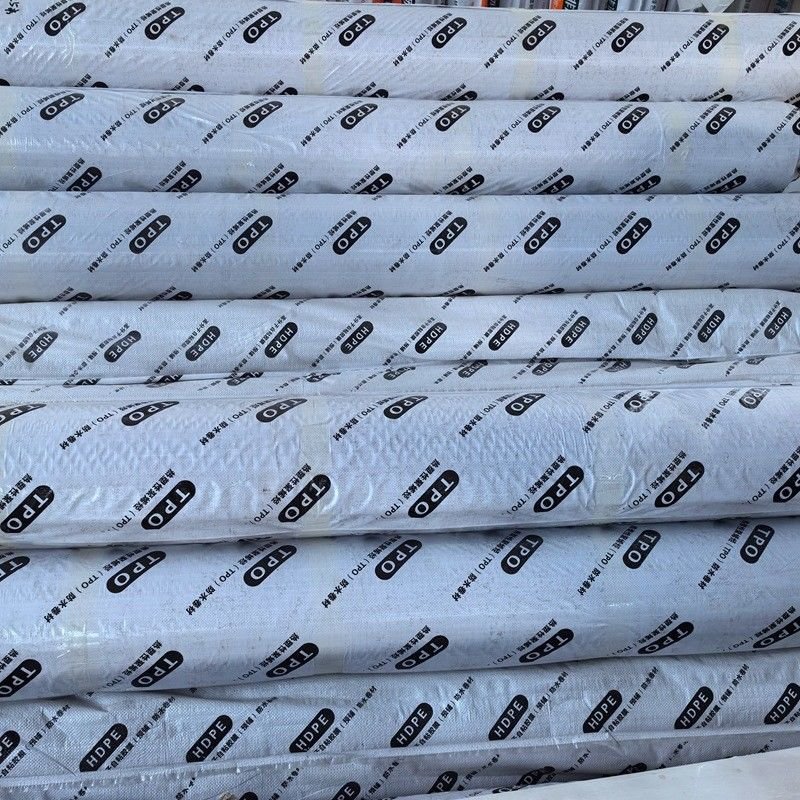

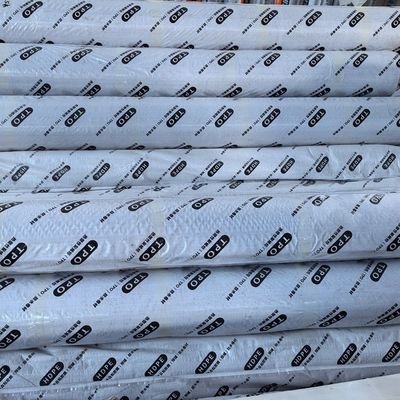

Each standard roll is individually encapsulated in polyethylene film. The width is 2.0m, and the length varies according to the thickness of the membrane.
- 0.8mm 30m(Each roll weighs about 48-50kg)
- 1.2mm 25m(Each roll weighs about 62-64kg)
- 1.5mm 20m(Each roll weighs about 62-64kg)
- 1.8mm 15m(Each roll weighs about 56-58kg)
- 2.0mm 15m(Each roll weighs about 62-64kg)
FAQ
Q: What is the lead time for production?
A: Typically, it takes 10 - 15 working days for standard orders. Urgent orders may be expedited upon request.
Q: What payment methods do you accept?
A: We accept T/T, L/C, and major credit cards like Visa and MasterCard. For new customers, 30% deposit is required, with the balance before shipment.
Q: Do you provide installation guidance?
A: Yes, we offer comprehensive installation manuals and online technical support. On - site installation assistance can also be arranged for an additional fee.
