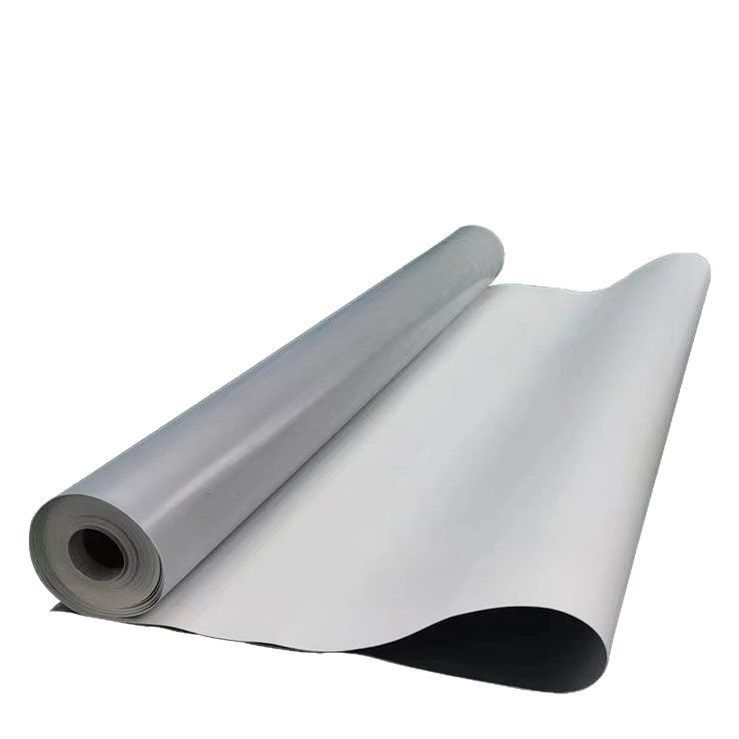

Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing
  • Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing
  • Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing
  • Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing
  • Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing
  • Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing

Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing

Place of Origin Shandong,China
Brand Name HAOBANG
Certification ISO
Model Number 1.2mm TPO waterproof membrane
Product Details
After-sale Service:
Online Technical Support, Return And Replacement
Project Solution Capability:
Graphic Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Roof
Design Style:
Traditional
Warranty:
1 Year
Model Number:
TPO(Smooth Version) 1.2mm*2m*20m
Color:
Grey, White (Color Can Be Customized)
Thickness:
1.2mm
Width:
1m/2m
Length:
20m/roll
Highlight:

tpo membrane waterproofing weldable

,

weldable tpo waterproofing membrane

,

1m tpo membrane waterproofing

Payment & Shipping Terms
Minimum Order Quantity
1,000 square meters
Price
Price negotiable
Packaging Details
Packed in Roll and on Pallet
Delivery Time
6-7 work days
Payment Terms
T/T,L/C
Supply Ability
680000 square meters per year
Product Description

Highly Durable TPO Waterproof Membrane Weldable Easy To Construct For Steel Roofing

      Product Description






 Product Name 1.2mm TPO Roofing Membrane  (Smooth Version)
 Material TPO
 Color  White



Based on thermoplastic polyolefin (TPO) material (combining the weldability of propylene-alpha-olefin copolymer resins from advanced polymerization processes with the durability of polypropylene resins), Haobang TPO-H is a homogeneous multi-layer composite thermoplastic polyolefin polymer waterproof membrane through advanced processing technology, and is used for detailed treatment of exposed roofs.

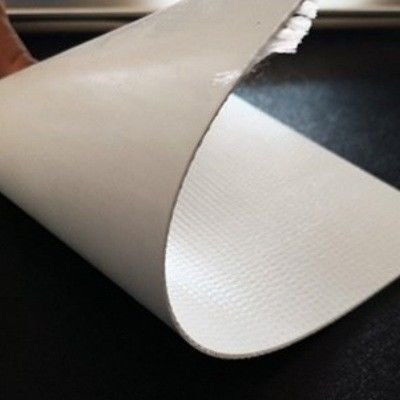

Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing 0Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing 1



      Technical Data Sheet






  GB27789-2011 TPO Waterproofing Membrane(Type H)
  Tensile Properties     Value
  Tensile strength MPa 12
  Elongation at rapture   % 500
  Dimensional change rate on heating   % 2
  Low temperature bending   - -40℃No Cracks
  Watertightness   - 0.3 MPa,2h Watertight
  Impact resistance - - 0.5 kg ·m, No water leakage
  Peel strength at joints   N/mm 4.0 or damaged
  Right angle tear strength   N/mm 60
  Water Absorption Rate(70℃168h)   % 4
  Heat aging (115℃)
  Time - h 672
  Appearance - - No blistering,cracks,delamination,sticking or voids
  Tensile strength retention % 90
  Elongation retention at rapture % 90
  Low temperature bendability - - -40, No Cracks
  Chemical resistance
  Appearance - - No blistering,cracksdelaminationsticking or voids
  Tensile strength retention % 90
  Elongation retention at rapture % 90
  Low temperature bendability - - -40℃,No Cracks
  Artificial climate accelerates aging
  Time - h 2500
  Appearance - - No blisteringcracks,delamination,sticking or voids
  Tensile strength retention   % 90
  Elongation retention at break % 90
  Low temperature bendability     -40℃, No Cracks
  Wind uplift resistance   4.3Kpa 90





      Application




  • Transportation hub: airport terminal, high-speed railway station, passenger terminal...
  • Public buildings: convention and exhibition centers, exhibition halls, stadiums...
  • New infrastructure: big data center, logistics center...
  • Industrial plants: automobiles, electronics, machinery, tobacco factories...



      Advantages




  • Excellent weldability;
  • Good low temperature flexibility;
  • Excellent dimensional stability;
  • Good elongation property;
  • Good impact resistance;
  • High sunlight reflectivity;
  • Energy saving and environmental friendly, recyclable;
  • Long-term resistance to UV exposure



      Specification





Each standard roll is individually encapsulated in polyethylene film. The width is 2.0m, and the length varies according to the thickness of the membrane.
  • 0.8mm 30m(Each roll weighs about 48-50kg)
  • 1.2mm 25m(Each roll weighs about 62-64kg)
  • 1.5mm 20m(Each roll weighs about 62-64kg)
  • 1.8mm 15m(Each roll weighs about 56-58kg)
  • 2.0mm 15m(Each roll weighs about 62-64kg)

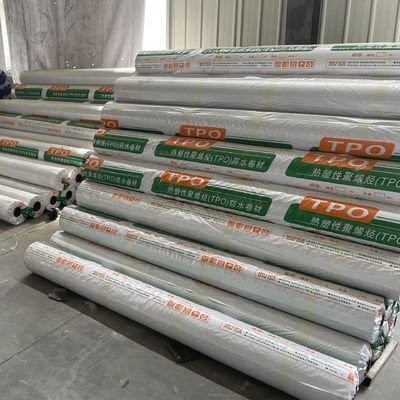

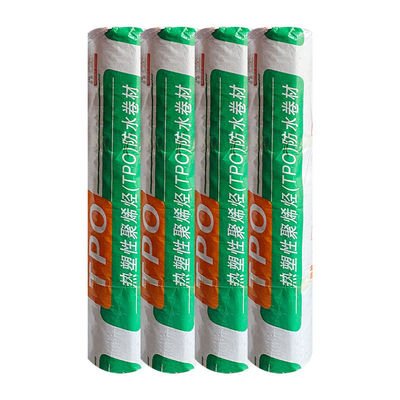

Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing 2



Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing 3



Highly Durable Tpo Membrane Waterproofing Weldable Easy To Construct For Steel Roofing 4

      FAQ






Q:  Is sample free?
A: Yes , sample of less than 1M2 or 1KG will be free of charge subject to buyer paying for freight cost.

Q: Could I use my own shipping agent ?
A: Yes , your agent will be welcomed.



Q:Is the price negotiable?
A: A favourable discount will be given if the order in large quantity.
